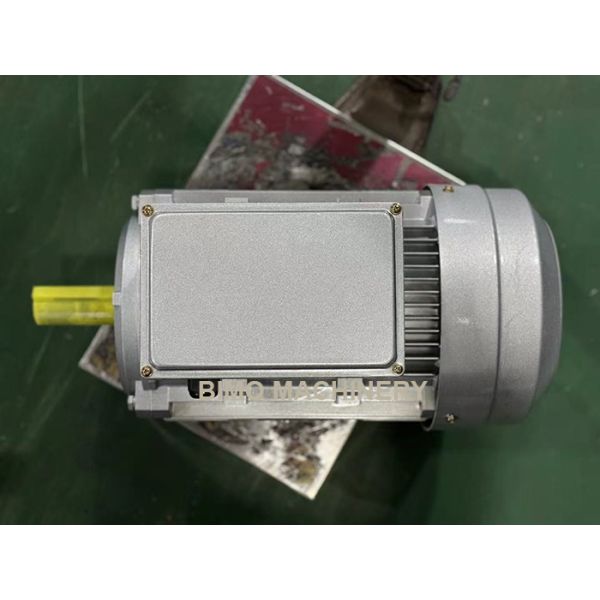

11 kw 15 hp Three Phase 220/380V Ac Electric Motor Y2-160M1-2 Y2 Series Motor 160M1 Frame B3 B14 B5 B34 B35 Mounting محرك كهربائي

Brand Name : BM

Model Number : Y2-160M1-2

Certification : CE

Place of Origin : China

MOQ : 10 pcs

Price : USD38-USD680

Payment Terms : T/T

Supply Ability : 1000pcs per day

Delivery Time : Usually within 30 days

Packaging Details : Cartons/Pallet

Name : 15hp Y2 series motor

Voltage : 220/380V

Mounting Type : B35

Frequency : 50Hz

Ambient temperature : -15 ℃-40℃

Power : 11KW

Contact Now

11 kw 15 hp Three Phase 220/380V Ac Electric Motor Y2-160M1-2 Y2 Series Motor 160M1 Frame B3 B14 B5 B34 B35 Mounting محرك كهربائي

1,Adopting the national uniform design, the Y2 series three-phase induction motor is conformity with IEC34 - 1 and JB / T 8680. 1-1998 standards. It possesses sophisticated features such as new construction,

2,good appearance, slight vibration, low noise, etc. Protection class :IP44 / IP55 Insulation class :F / H Cooling method :ICO141

3,Working　Condition: - Ambient temperature : -15℃≤~≤40℃ - Altitude :not exceed 1000 m - Rated voltage :380V or any voltage between 220V - 760V - Duty: S1 (continuous) *- Connection :Star - connection for up to 3KW , delta - connection for 4KW and above

Ist/In
Power
(A)
Power
Eff.(%)
Speed
Tstart/Tn
Ist/In
Tmax/Tn
(kw)
Factor
(r/min)
Y2-631-2
0.18
0.52
0.8
65
2825
2.2
5.5
2.2
Y2-362-2
0.25
0.69
0.81
68
2840
2.2
5
2.2
Y2-711-2
0.37
0.99
0.82
70
2840
2.2
6
2.2
Y2-712-2
0.55
1.4
0.83
73
2880
2.2
6
2.2
Y2-801-2
0.75
1.8
0.84
75
2890
2.2
6
2.2
Y2-802-2
1.1
2.6
0.84
77
2900
2.2
7
2.2
Y2-90S-2
1.5
3.4
0.85
79
2900
2.2
7
2.2
Y2-90L-2
2.2
4.8
0.87
81
29000
2.2
7
2.2
Y2-100L-2
3
6.3
0.88
83
2930
2.2
7
2.2
Y2-112M-2
4
8.1
0.88
85
2930
2.2
8
2.2
Y2-132S1-2
5.5
11
0.88
86
2940
2.2
8
2.2
Y2-132S2-2
7.5
15
0.88
87
2950
2.2
8
2.2
Y2-160M1-2
11
21.3
0.89
88
2950
2
8
2.2
Y2-160M2-2
15
28.7
0.9
89
2970
2
8
2.2
Y2-160L-2
18.5
34.6
0.9
90
2970
2
8
2.2
Y2-180M-2
22
40.9
0.9
90
2970
2
8
2.2
Y2-200L1-2
30
55.4
0.9
91.2
2970
2
8
2.2
Y2-200L2-2
37
67.7
0.9
92
2980
2
8
2.2
Y2-225M-2
45
82.3
0.9
92.3
2980
1.8
8
2.2
Y2-250M-2
55
101
0.9
92.5
2980
1.8
7
2.2
Y2-280S-2
75
134
0.9
93
2980
1.8
7
2.2
Y2-280M-2
90
160
0.91
93.8
2980
1.8
7
2.2
Y2-315S-2
110
195
0.91
94
2980
1.8
6.8
2.2
Y2-315M-2
132
233
0.91
94.5
2980
1.8
6.8
2.2
Y2-315L1-2
160
279
0.92
94.6
2980
1.8
6.8
2.2
Y2-315L2-2
200
348
0.92
94.8
2980
1.8
6.8
2.2
Y2-355M1-2
250
433
0.92
95.3
2980
1.6
7
2.2
Y2-355L2-2
315
544
0.92
95.6
2980
1.6
7.1

2.2

11 kw 15 hp Three Phase 220/380V Ac Electric Motor Y2-160M1-2 Y2 Series Motor 160M1 Frame B3 B14 B5 B34 B35 Mounting محرك كهربائي

11 kw 15 hp Three Phase 220/380V Ac Electric Motor Y2-160M1-2 Y2 Series Motor 160M1 Frame B3 B14 B5 B34 B35 Mounting محرك كهربائي11 kw 15 hp Three Phase 220/380V Ac Electric Motor Y2-160M1-2 Y2 Series Motor 160M1 Frame B3 B14 B5 B34 B35 Mounting محرك كهربائي11 kw 15 hp Three Phase 220/380V Ac Electric Motor Y2-160M1-2 Y2 Series Motor 160M1 Frame B3 B14 B5 B34 B35 Mounting محرك كهربائي

1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

11 kw 15 hp Three Phase 220/380V Ac Electric Motor Y2-160M1-2 Y2 Series Motor 160M1 Frame B3 B14 B5 B34 B35 Mounting محرك كهربائي

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
